ZILVERPARKKADE

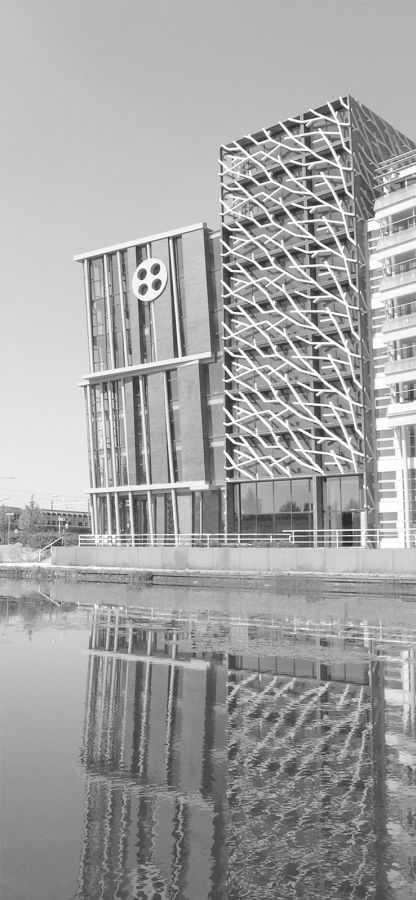

The project derives its romantic name (Silver Park Quay) from its location: the office cluster on the
Zilverparkkade in Lelystad. West 8 designed the urban plan for the area in conformity with the current trend
for condensed city-centres. With an idyllic wink to the 17th century Dutch canal-houses the offices are lined
up shoulder to shoulder on narrow plots. In such a compact row with a strict layout the only elements to
create a discriminating identity are the facades.

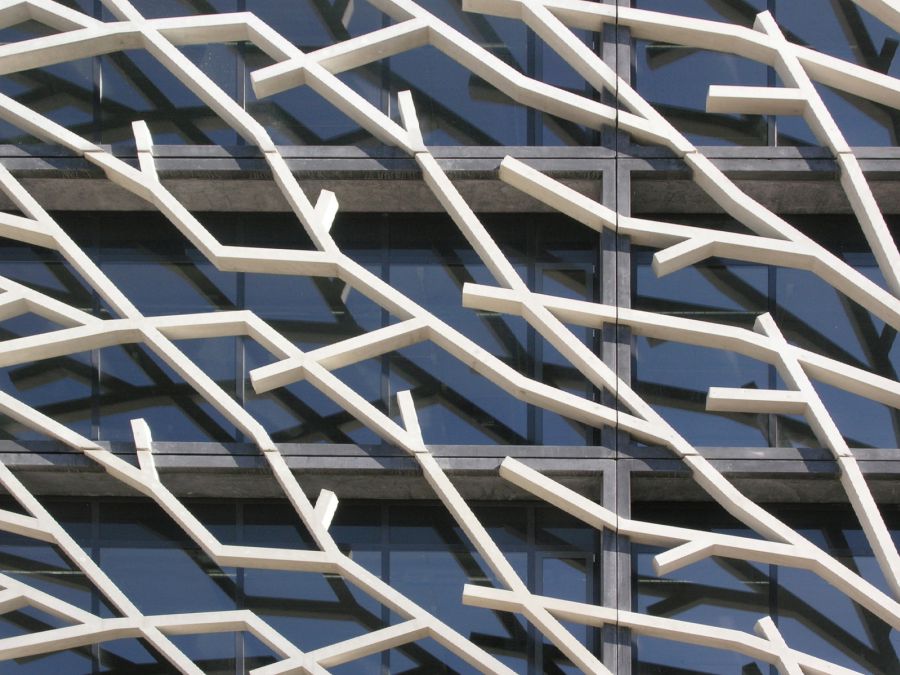

All four façade surfaces in the design are either entirely or partly covered with prefabricated concrete
elements, symbolizing a branch-like structure. This blown-up filigree is the result of a study of infinite patterns.
The works of the Dutch graphic artist Maurits Escher have been an unmistakable model. Specific skills
are required to devise a repetitive pattern that, applied in a limited number of different concrete elements,
constitutes a seamless entity. The craftsmanship needed to avoid the repeating units to be too obvious,
has an analogy with designing rotation press patterns for textile and wallpaper.

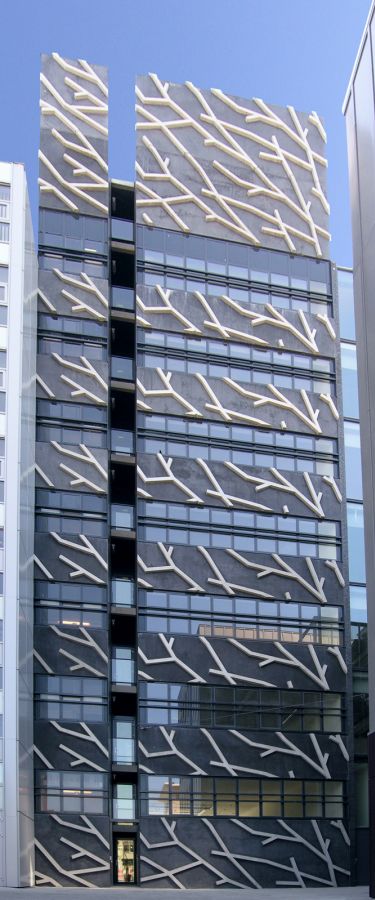

The façade structure continues around the corners, providing the office building a recognizable identity

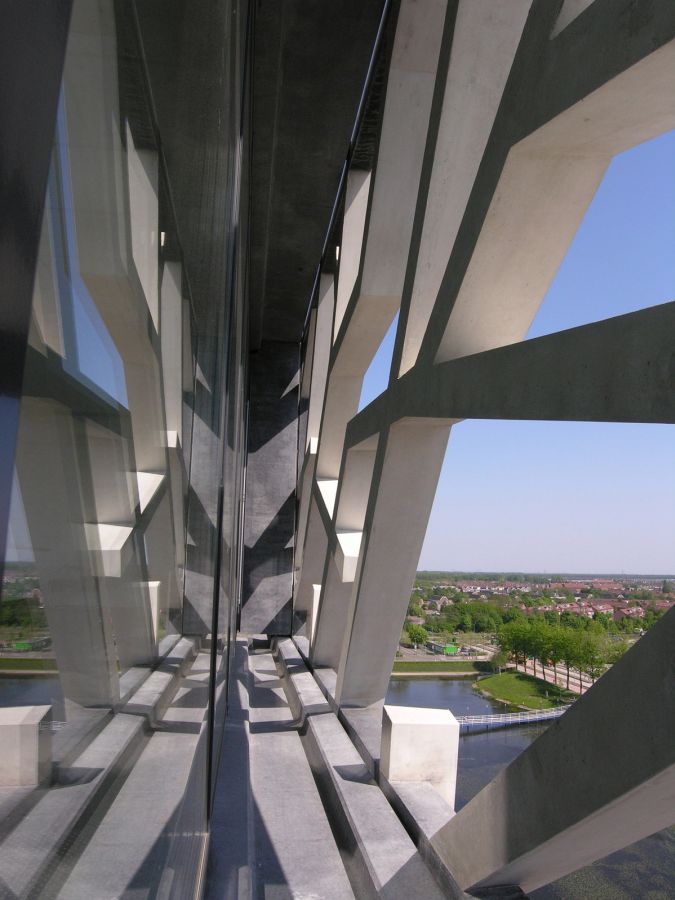

distinct from the adjacent properties. The south and west elevation have a double layer façade with
window-cleaners’ ledges in between. A profitable side-effect of these narrow balconies is their function
as a barrier to prevent vertical spread of fire. As a result storey high panes of ordinary (non-heat-resistant)

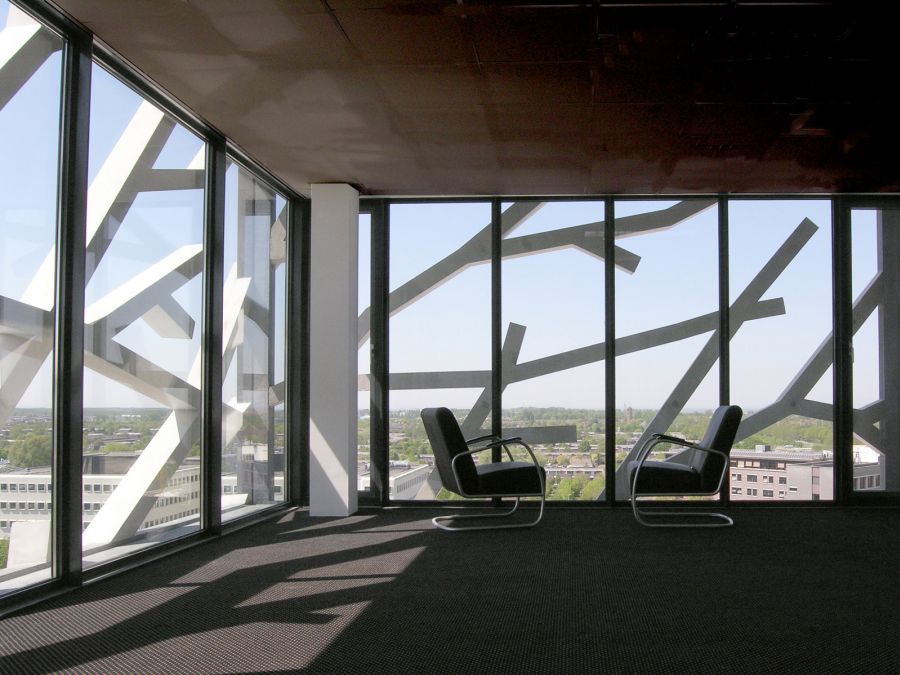

glass could be applied. The ledges also act as large sun protection slats. The branch structure provides an
obscured vista from the outside, but from the inside the users hardly have any impairment of the view on
the surroundings.

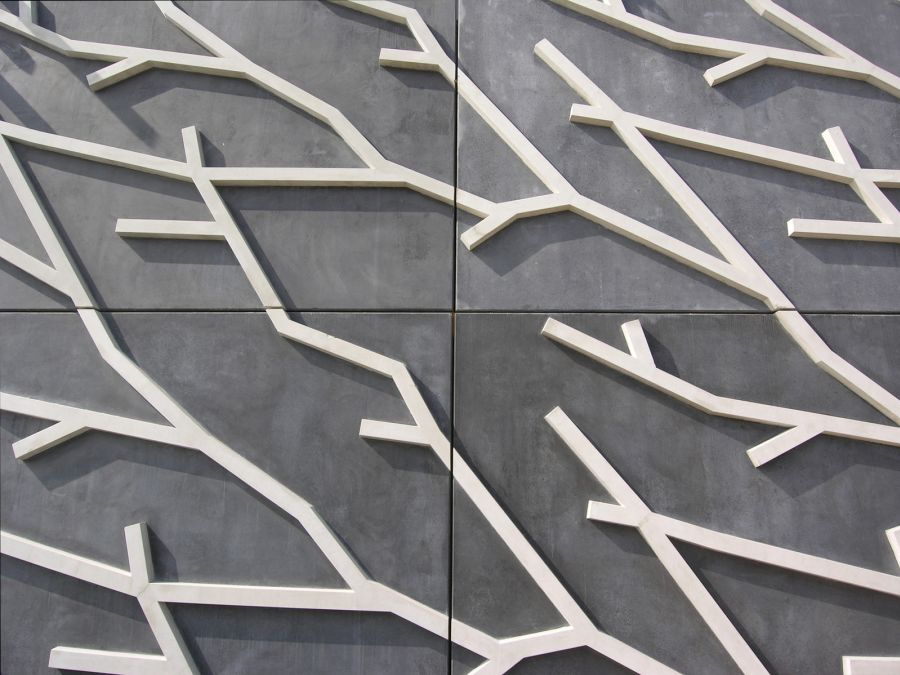

The concrete elements on the north and east façade are solid. The branch-pattern on these panels is
applied in high relief en is highlighted by using two different shades of aggregates. The rear façade has
an alternating structure of horizontal strips of textured concrete and windows, with a vertical cut splitting
the building asymmetrically. This incision visualizes the zoning and subtly affects the repetition of the solid
concrete panels. The construction of the Zilverparkkade-project has commenced in 2004 and will be
completed by the end of 2005.

Maarten Willems

Project data
> Location: Zilverparkkade D, Lelystad / Netherlands
> Client: Develop-Havelte, Lelystad / Netherlands
> Program: Office building
> Office: René van Zuuk Architekten b.v., Almere / Netherlands
> Architect: René van Zuuk
> Design team: René van Zuuk, Kersten Scheller
> Master plan: West 8, Rotterdam / Netherlands
> Structural Engineer: Van Rossum, Almere / Netherlands
> Building Contractor: Ter Steege, Rijssen / Netherlands
> Site area: 222 m²
> Floor area: 1867 m²
> Cubage: 6620 m³
> Start of planning: 07/2002
> Start of construction: 06/2004
> Completion: 04/2006
> Building costs: € 1.750 000,--
